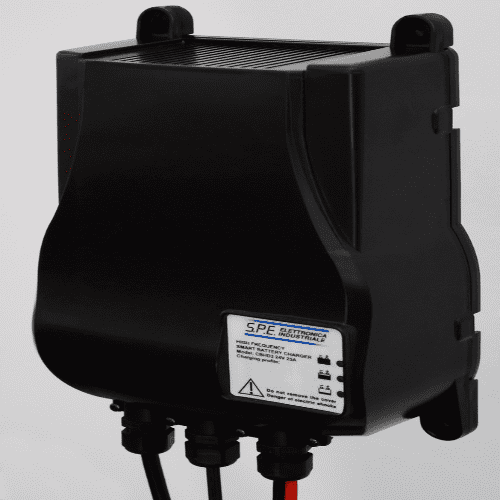

High Frequency Traction Battery Charger 24V 25amp

Product information

- High frequency system with advanced technology.
- Universal Input 85Vac÷264Vac, 50Hz÷60Hz.
- Integrated battery discharge indicator with lockout relay for 80% discharged batteries with 3-LED 18 mm diameter remote indicator (optional: please add the suffix LBF to the model of the charger).
- Remote red/yellow/green charge status indicator also displays signals in case of anomalies (optional)
- Charging parameters are insensitive to the AC input line voltage variations.
- Charging process fully controlled by microprocessor.
- Resident charging curves for lead-acid, AGM and Gel batteries.
- Possibility to choose from curves for typical leadacid, Gel and AGM batteries, all other curves available on request.
- Protection with an output relay against polarity inversions, short circuits, over-voltages or anomalies.
- Efficiency > 85%.
- Output ripple at maximum charge lower than 100mV.
- Charge cycle begins with batteries as low as 2V
- Thermal protection against over heating.
- Normally closed auxiliary contact of connected AC input line.
- Forced ventilation with fans.

Technical specifications

Condition New
